Product Details:
|
| Main Structure:: | Light Gauge Steel | Application:: | House/Shop/Warehouse/Workshop/Plant |
|---|---|---|---|
| Advantage:: | Easy Installation,environment Protection | Windows:: | PVC Or Aluminum Alloy |
| Color:: | White, Wood Grain, Grey, Blue, Red, As Per Ral | Surface Treatment:: | Painting Or Hot-dip Galvanize |
| Highlight: | Light Gauge Steel Frame House Quick Assembly,Quick Assembly Prefab steel House,Reusable Light Gauge Steel Frame House |
||

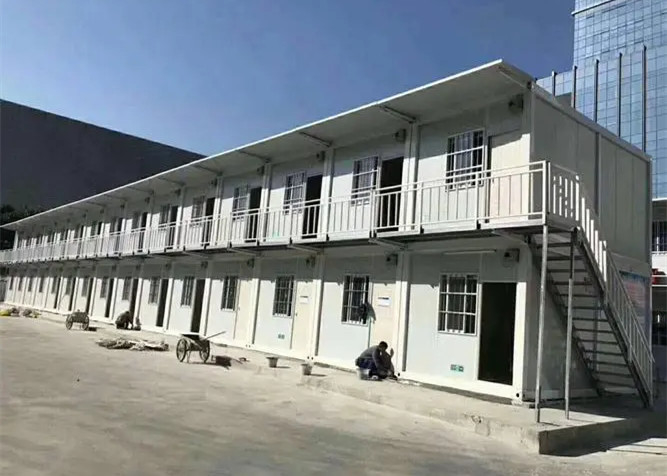

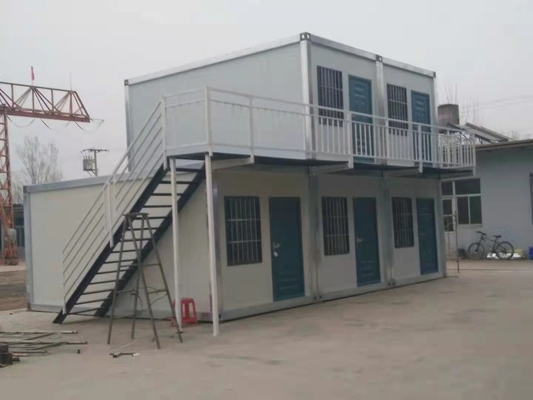

Light Gauge Steel Frame House Quick Assembly Prefab House
The composite board house adopts galvanized light steel structure, and all components are made by standard shaping
1. C-shaped steel columns, the columns are double-jointed 80C-shaped steel, the floor beams and herringbone beams are all 80C-shaped steel, light roof purlins, floor purlins, ground beams, and ring beams are made of wood plywood, and the tie rods are round steel ,
2. Exterior wall panel: 50mm double-sided color steel wire cotton board, the standard module is color steel plate with a thickness of 0.27mm;
3. Partition wall panel: 50mm double-sided color steel wire cotton board is used, and the thickness of the color steel plate is 0.27mm;
4. Windows: standard plastic-steel windows;
5. Door: standard universal color steel composite door (or steel door), with spherical lock.
Features of light steel structure panel house:
1. Flexible combination
Can be used in a single box, can be combined into a large open space, and can be stacked up to 3 layers
2. Reusable, fully furnished
It can be matched with different shapes of roofs, corridors, canopies, and stairs. In addition, there are special bathroom boxes and kitchen boxes to choose from, and the exterior and interior can be decorated according to requirements.
3. Easy to move and save freight
After flattening and compression, every 4 sets is equivalent to the size of a standard 20-foot container, saving 3/4 of the shipping cost; 6 sets can be shipped in a 40-foot high container.
| Dimension | Length x Width x Eave height/ Ridge height |
| Frame type | Portal frame, multi-story frame |
| Main frame | Hot-rolled or Welded H beam and column, Q355B steel |
| Bracing components | Tie bar, staying bar, Horizontal bracing, Column bracing |
| Cladding system | Corrugated color steel sheet, sandwich panel with glass wool, rock wool,PU insulation |
| Accessory | Ridge tile, trim, Gutter, Down pipe,skylight, clerestory |
| Door | Sliding door, Roll up door, industrial section door, swing door |
| Window | PVC window, aluminum window, metal louver |
(1) The form basically can satisfy a variety of purposes buildings,when need no pillar and capacious space,is an ideal system, often used in performance hall, indoor stadium, hangar, industrial warehouses,etc.
(2) This kind of structure is mainly used in the structure of the width is not very big, flush outside wall columns and walls, wall line is simple, indoor can provide greater space,has the very good commercial application value.
(3) When used in large factories and warehouses,it is an ideal choice.Low cost per unit area,the use of space is large, is more economic.
