Q235 Q355 Light Steel Frame Structures Warehouse Shed Construction

Large Image : Q235 Q355 Light Steel Frame Structures Warehouse Shed Construction

Product Details:

Place of Origin:	Hebei China
Brand Name:	LANGE
Model Number:	lg 1059

Payment & Shipping Terms:

Price:	Negotiable
Packaging Details:	Containers
Delivery Time:	2-4 months
Payment Terms:	L/C, D/A, T/T
Supply Ability:	15,000 square meter per month

Contact Now

Q235 Q355 Light Steel Frame Structures Warehouse Shed Construction

Description

Material::	Carbon Structural Steel	Certification::	Quality Certificate From Factory, The Third Party By Client Request.
Life Span::	50 Year For Main Steel Structure	Type Of Steel For Building Structure::	High-Strength Steel
Specification::	Customized	Base::	Cement And Steel Foundation Bolts
Highlight:	Q355 Light Steel Frame Structures , Q235 Light Steel Frame Structures , LANGE Warehouse Shed Construction

Light Steel Frame Structures Buildings Low Cost Warehouse Construction

Product Characteristics
1. Low maintenance costs
2. Environmentally friendly, recycling.
3. Flexibility when fixing doors, windows and interior partitions
4. Steel structure construction is strong, durability and stability.
5. Long service life for more than 50 years
6. Fast construction ,easy installation and convenient to transport.

Items		Specification
Main Steel Frame	Column	Q235, Q355 Welded H Section Steel
Main Steel Frame	Beam	Q235, Q355 Welded H Section Steel
Secondary Frame	Purlin	Q235 C and Z purlin
	Knee brace	Q235 Angle Steel
	Tie rod	Q235 Circular Steel Pipe
	Brace	Q235 Round Bar
	Vertical&Horizontal support	Q235 Angle Steel, Round Bar or Steel Pipe
Maintenance system	Roof panel	EPS Sandwich Panel / Glass Fiber Sandwich Panel /
	Roof panel	Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet
	Wall panel	Sandwich Panel / Corrugated Steel Sheet
Accessories	Window	Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window
	Door	Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
	Rainspout	PVC
Live load on Roof		In 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade		12 Grades
Earthquake-resistance		8 Grades
Structure Usage		Up to 50 years
Finishing Options		Vast array of colors and textures available
Paint Options		Alkyd paiting, two primary painting, two finish painting
Paint Options		(gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized.

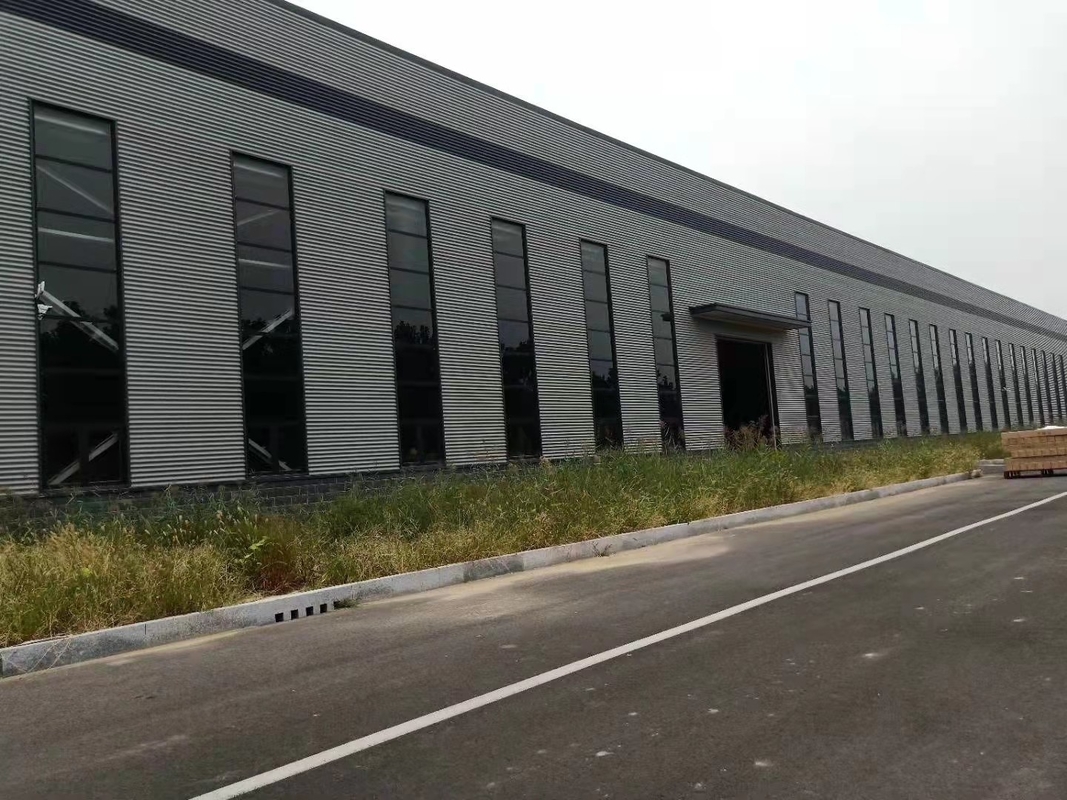

Q235 Q355 Light Steel Frame Structures Warehouse Shed Construction 0

We always take "high quality, fast installation, attractive looks, practical use" as design concept and "credibility and quality oriented" as management concept to restrain and regulate ourselves. LANGE will spare no efforts to provide you most appropriate solution and reliable project quality. You are welcomed to visit our factory and establish business relations.

Q235 Q355 Light Steel Frame Structures Warehouse Shed Construction 1
