Product Details:
|
| Drawing:: | We Can Make The Design And Quotation According To Your Requirements Or Your Drawing | Certification:: | Quality Certificate From Factory, The Third Party By Client Request. |
|---|---|---|---|
| Size:: | As Customer's Require | Type:: | Light/heavy |
| Specification:: | Customized | Application:: | Warehouse、Workshop |
| High Light: | ODM Large Span Steel Buildings,Q345 Large Span Steel Buildings,Workshop Warehouse Steel Structure |
||
Steel structure warehouses can be designed according to different uses in different industries. There are many options for walls and roofs, including single-color corrugated boards and sandwich panels or metal cladding with thermal insulation. Steel structure warehouses can meet a wide range of project needs, from commercial (car shed, exhibition hall) to agriculture (metal warehouse, warehouse shed) to industry (workshop, equipment warehouse).

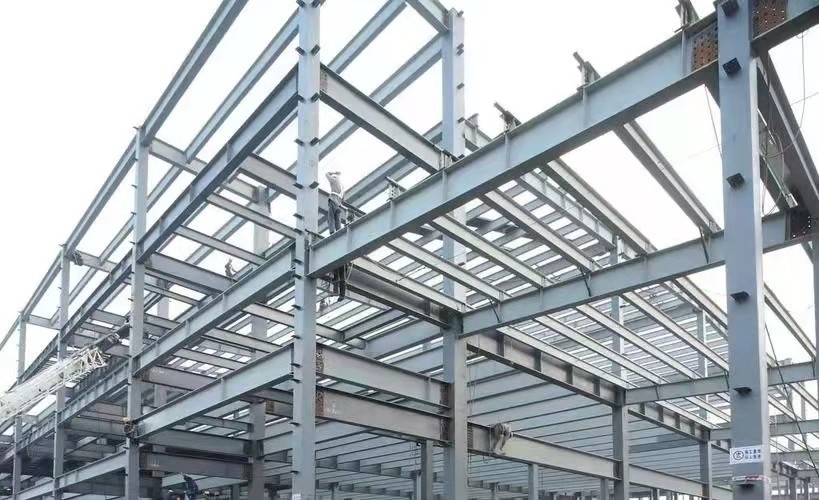

The steel frame of a steel warehouse building usually consists of vertical columns and horizontal beams. These beams and columns are bolted or welded to form a door frame. The top beam is a horizontal structural member. It can resist the live load and constant load laterally imposed on its shaft. Steel columns are vertical structural members that transfer loads. They form the skeleton of the building.
| Main frame steel | Steel Welded H Section or hot rolled H section |
| Purlin | C or Z Section Channel for roof and wall |
| Cladding system | Sandwich Panel or Corrugated Steel Sheet with Fiber Glass Wool for wall and roof |
| Tie Rod | Circular Steel Tube |
| Brace | Round Bar |
| Column & Transverse | Angle Steel or H Section Steel or Steel Pipe |
| Knee Brace | Angle Steel |
| Roof Gutter | Color Steel Sheet |
| Rainspout | PVC Pipe |
| Door | Sliding Sandwich Panel Door or Metal Door |
| Windows | PVC/Plastic Steel/Aluminum Alloy Window |
| Connecting | High Strength Bolts |
| Main steel material | Q345, Q235, Q345B, Q235B,Q355 etc |
| Packing | Decided by you , loaded into 1X 40ft GP,1X20 ft GP,1X40 ft HQ |
| Drawing | We can make the design and quotation according to your require or you |
| Crane | Decided by you |
Q:Can you offer designing service?
A: Yes, we have our own design engineers. We could design full solution drawings as per your requirments. They use software: Auto CAD, MTS, 3D3S, Tarch, Tekla Structures(Xsteel)V12.0.etc.
Q:Do you offer guiding installation on site overseas?
A:Yes, usually we will send you the detailed installation drawing, if you need, we can provide the service of installation, supervision and training by extra. We can also send our professional technical engineer to supervise installation on site overseas.
