Portal Frame Steel Structure Warehouse Multi Floors Commercial Metal Building

Large Image : Portal Frame Steel Structure Warehouse Multi Floors Commercial Metal Building

Product Details:

Place of Origin:	Hebei China
Brand Name:	LANGE

Payment & Shipping Terms:

Price:	Negotiable
Packaging Details:	Containers
Delivery Time:	2-4 months
Payment Terms:	L/C, D/A, D/P
Supply Ability:	20,000 square meter per month

Contact Now

Portal Frame Steel Structure Warehouse Multi Floors Commercial Metal Building

Description

Window::	PVC Window, Aluminum Window, Metal Louver	Type Of Steel For Building Structure::	High-Strength Steel
Color::	According To Customers	Connection Form::	Welded Connection
Specification::	Customized	Base::	Cement And Steel Foundation Bolts
Highlight:	Portal Frame Steel Structure Warehouse , C160 300 Steel Structure Warehouse , Multi Floors Commercial Metal Building

Low-Cost Industrial Design Commercial Metal Building Steel Structure Warehouse

The portal frame steel structure workshop applies prefabricated steel to form a load-bearing structure. Generally, the load-bearing structure is called main frame, which are consisting of beam and column . The secondary steel bracing system normally includes tie bar, knee bracing,purlin, sag rod, column bracing, as well as horizontal bracing. Together with roof system, wall system, and floor system, they are conforming an entire steel structure building.

Technical parameters:
Dimension	Length x width x Eave height, roof slope
Type	Single slope, double slope, muti-slope; Single span, double-span , multi-spans; Single floor, double floors , multi-floors
Foundation	Concrete and steel foundation bolts
Column and beam	Hot rolled or welded H steel Q355B, straight cross-section or Variable cross-section
Bracing	X or V or other type bracing made from angle steel or steel bar
C or Z purlin	C/Z section steel with size C160-300 or Z160-300
Roof and wall panel	Single colorful corrugated steel sheet; sandwich panel with insulation of EPS, Rock wool, glass wool or PU
Accessories	Semi-transparent skylight belts, Ventilators, down pipe, gutter,doors,windows, etc
Surface treatment	Painting or hot dip galvanized

Portal Frame Steel Structure Warehouse Multi Floors Commercial Metal Building 0

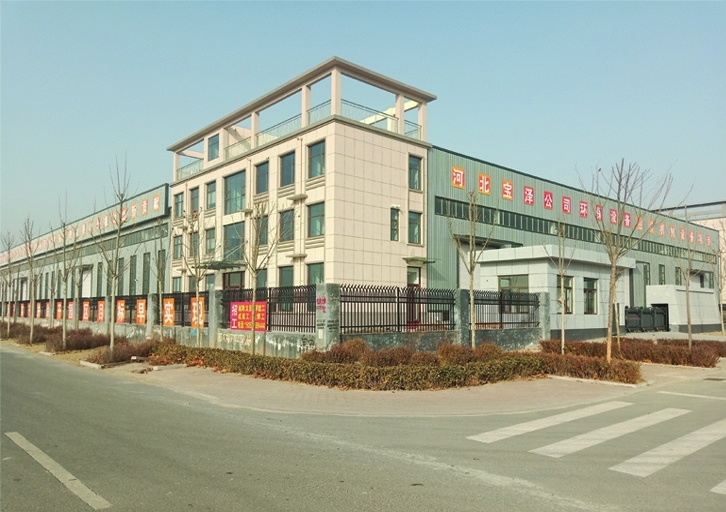

Our company:

My company has a large steel structure processing equipment, select high-quality plates,according to the national standards of manufacturing series of products, to meet the needs of the various types of steel structure engineering.

Portal Frame Steel Structure Warehouse Multi Floors Commercial Metal Building 1
